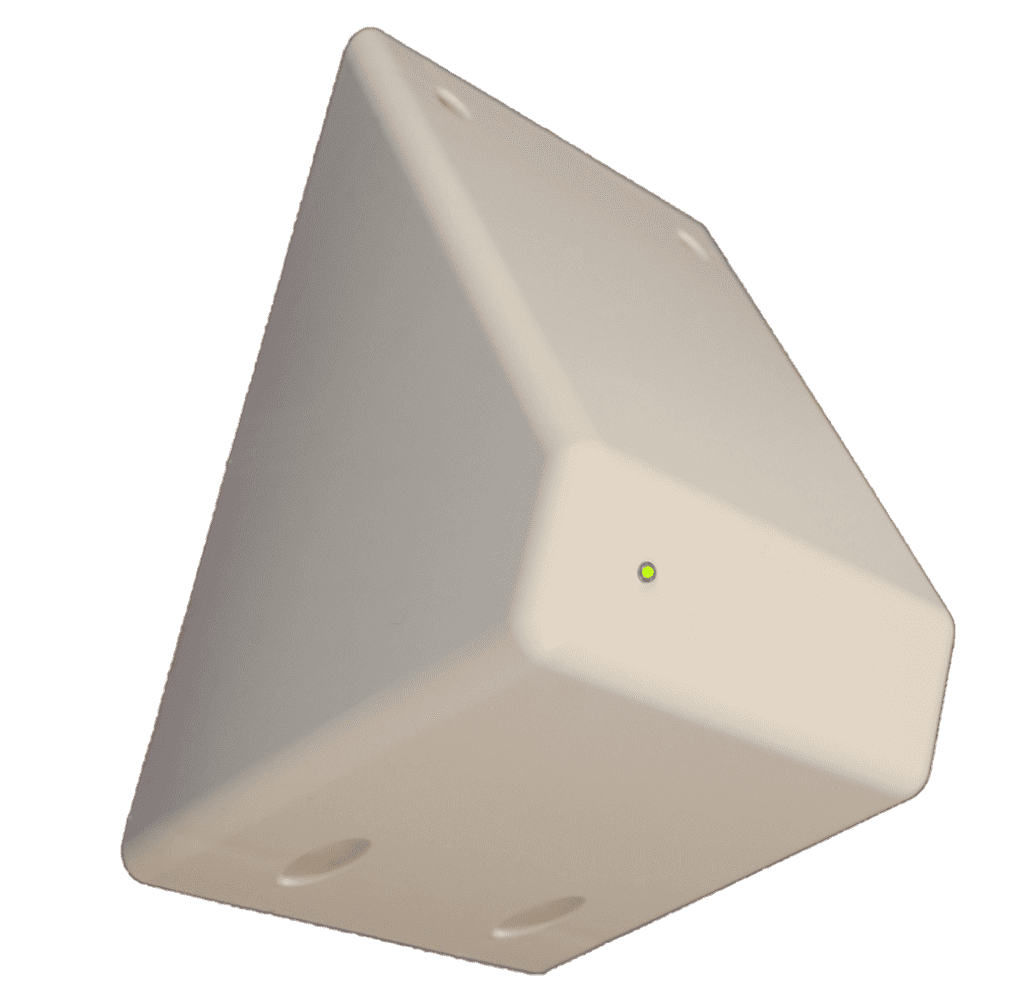

The 60003W Locator monitors multiple 2.4 GHz RF channels for tag transmissions to determine accurate device proximity. This Locator maintains radio communication with the Gateway via 900MHz LoRa. When coupled with a head end, the 60003W provides the operating muscle to provide timely and accurate location information. This device is intended for wall mount positions only and provides antenna angle placements of 15, 30, 45, 75 and 90 from the mounting surface.







60003W | Location Device Node Wall Mount

  • Able to receive/transmit in the harshest RF environments
  • Monitors RF transmission from Tags
  • Long range transmission
  • Capable of varying granularity due to adjustable detection range
  • Mounts to a standard US 2 gang box
  • Retrofits 100% to PALS® 9000 IR device housings utilizing the same power
  • Dual band RFID locating device
  • Compatible with ATLAS® system components
  • Over 65,000 programmable location codes
  • Returns accurate RF location and tracking information
  • Full transmitter supervision includes alarms for low battery & inactivity
  • Easy installation (consult installation manual for outdoor/high moisture applications)



Dimensions: 9” x 6” x 5” (HxWxD)

Weight: 8 ounces

Power Requirements: 12 VDC

Power Consumption: Peak:400mA Continuous: 32mA

RF Detection Range: up to 250 feet (dependent on tag output power, installation height, and structure characteristics)

Operating Temperature: -30° to 85° Celsius

Operating Humidity: 20% to 90%

Wiring Requirements: 2 conductors, 22 AWG minimum, 18 AWG maximum (consult a qualified electrical engineer for wiring gauge appropriate for voltage/current consumption)

Screw Requirements: Security screws for mounting locator domes do not ship with locators. The size required is 10-32 x 7/16″. Actall recommends McMaster Carr PN 92949A264.



Data Sheet

60003W | Locator Wall Mount

The 60003W Locator monitors multiple 2.4 GHz RF channels for tag transmissions to determine accurate device proximity. This Locator maintains radio communication with the Gateway via 900MHz LoRa. When coupled with a head end, the 60003W provides the operating muscle to provide timely and accurate location information. This device is intended for wall mount positions only and provides antenna angle placements of 15, 30, 45, 75 and 90 from the mounting surface.

60003W | Location Device Node Wall Mount

Features & Benefits

  • Able to receive/transmit in the harshest RF environments
  • Monitors RF transmission from Tags
  • Long range transmission
  • Capable of varying granularity due to adjustable detection range
  • Mounts to a standard US 2 gang box
  • Retrofits 100% to PALS® 9000 IR device housings utilizing the same power
  • Dual band RFID locating device
  • Compatible with ATLAS® system components
  • Over 65,000 programmable location codes
  • Returns accurate RF location and tracking information
  • Full transmitter supervision includes alarms for low battery & inactivity
  • Easy installation (consult installation manual for outdoor/high moisture applications)





Specifications

Dimensions: 9” x 6” x 5” (HxWxD)

Weight: 8 ounces

Power Requirements: 12 VDC

Power Consumption: Peak:400mA Continuous: 32mA

RF Detection Range: up to 250 feet (dependent on tag output power, installation height, and structure characteristics)

Operating Temperature: -30° to 85° Celsius

Operating Humidity: 20% to 90%

Wiring Requirements: 2 conductors, 22 AWG minimum, 18 AWG maximum (consult a qualified electrical engineer for wiring gauge appropriate for voltage/current consumption)

Screw Requirements: Security screws for mounting locator domes do not ship with locators. The size required is 10-32 x 7/16″. Actall recommends McMaster Carr PN 92949A264.
