ATLAS System | Locators
60003X | Locator Outdoor Mount

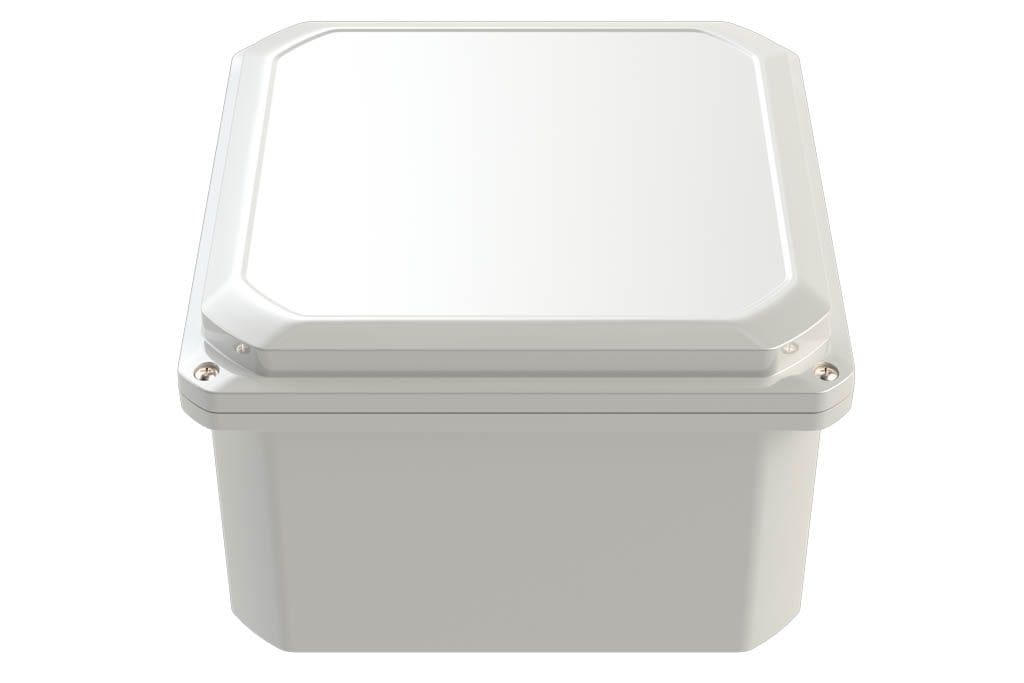

The 60003X Locator monitors multiple 2.4 GHz RF channels for tag transmissions to determine accurate device proximity. This Locator maintains radio communication with the Gateway via 900MHz LoRa. When coupled with a head end, the 60003X provides the operating muscle to provide timely and accurate location information. This device is intended for outdoor mount positions and provides antenna angle placements of 15, 30, and 45 from the mounting surface.
Features & Benefits
Features & Benefits
- Able to receive/transmit in the harshest RF environments
- Monitors RF transmission from Tags
- Long range transmission
- Capable of varying granularity due to adjustable detection range
- Mounts to a standard US 2 gang box
- Retrofits 100% to PALS® 9000 IR device housings utilizing the same power
- Dual band RFID locating device
- Compatible with ACTALL ATLAS™ system components
- Over 65,000 programmable location codes
- Returns accurate RF location and tracking information
- Full transmitter supervision includes alarms for low battery & inactivity
- Easy installation
- Rated for outdoor installation
Specifications
Specifications
Dimensions: 10” x 10” x 7.2” (HxWxD)
Weight: 26 ounces
Power Requirements: 12 VDC
Power Consumption: Peak:400mA Continuous: 32mA
RF Detection Range: up to 250 feet (dependent on tag output power, installation height, and structure characteristics)
Operating Temperature: -30° to 85° Celsius
Operating Humidity: 20% to 90%
Wiring Requirements: 2 conductors, 22 AWG minimum, 18 AWG maximum (consult a qualified electrical engineer for wiring gauge appropriate for voltage/current consumption)
Learn more | www.actall.com | 1-800-598-1745 Actall Corporation | PALS® U.S. Patent No. 6.175.308 | 2018 | REV A
