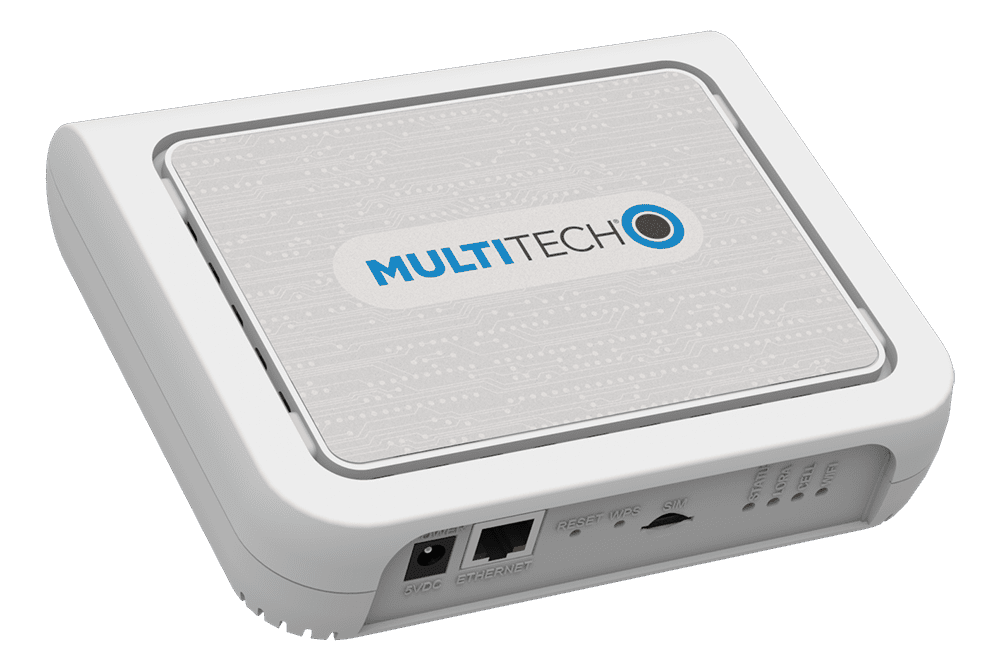

60004 | Gateway

60004 | Gateway



The 60004 Gateway regulates communication to the ATLAS® RTLS system through an Ethernet interface. The Gateway communicates from Actall Locators & HDTs via 900mHz LoRa, and relays data via Ethernet to the HubSens locating engine.







Gateway Interior

FEATURES

  • Compatible with ATLAS® system components
  • Ethernet Interface: RJ-45 connector / 10/100 Mbps data rate
  • Powered via PoE
  • Able to receive/transmit in the harshest RF environments
  • Monitors RF transmission from Locators & HDTs
  • Comes in weather proof enclosure



SPECIFICATIONS

  • Dimensions: (HxWxD)
    • Device: 6.5″ x 5.3″ x 1.4″
    • Enclosure: 11.81″ x 9.06″ x 3.41″
  • Weight : 8 ounces
  • Power Requirements: Powered via PoE, meeting IEEE 802.3af standard
  • Ethernet Interface: RJ-45
  • Data Rate: 10/100 Mbps
  • Operating Temperature: -45° to 85° Celsius
  • Operating Humidity: 20% to 90%



Data Sheet

60004 | Gateway

The 60004 Gateway regulates communication to the ATLAS® RTLS system through an Ethernet interface. The Gateway communicates from Actall Locators & HDTs via 900mHz LoRa, and relays data via Ethernet to the HubSens locating engine.

Gateway Interior

Features & Benefits

  • Compatible with ATLAS® system components
  • Ethernet Interface: RJ-45 connector / 10/100 Mbps data rate
  • Powered via PoE
  • Able to receive/transmit in the harshest RF environments
  • Monitors RF transmission from Locators & HDTs
  • Comes in weather proof enclosure





Specifications

  • Dimensions: (HxWxD)
    • Device: 6.5″ x 5.3″ x 1.4″
    • Enclosure: 11.81″ x 9.06″ x 3.41″
  • Weight : 8 ounces
  • Power Requirements: Powered via PoE, meeting IEEE 802.3af standard
  • Ethernet Interface: RJ-45
  • Data Rate: 10/100 Mbps
  • Operating Temperature: -45° to 85° Celsius
  • Operating Humidity: 20% to 90%
