60007 XL | One Button XL Round Tag

60007 XL | One Button XL Round Tag

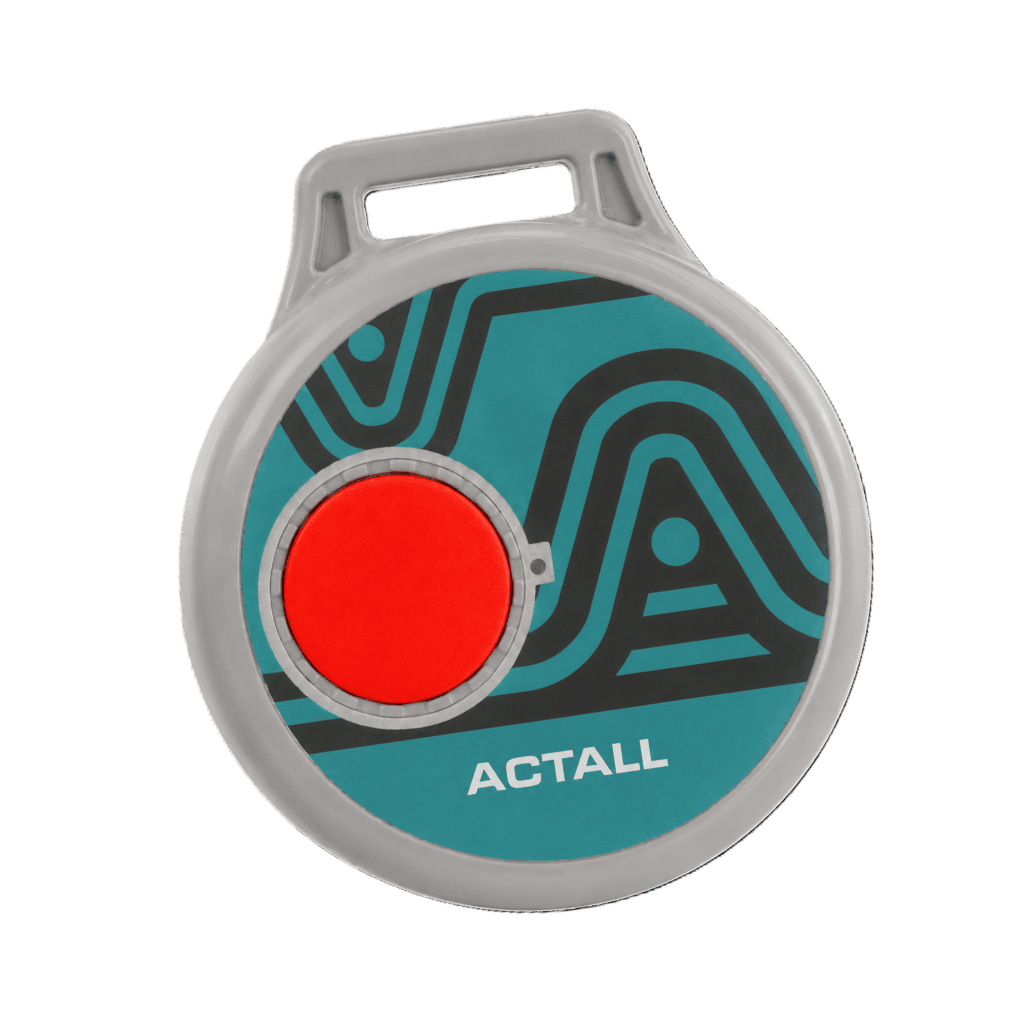

The 60007 XL One Button Round Tag is designed for operation within the ATLAS® system architecture. This simple, reduced size transmitter is designed to provide staff, patients and vendors a lower cost alternative to the ruggedly constructed standard 60001 Heavy Duty Tag.

Like the standard Heavy Duty Tag, the 60007 utilizes a 2.4 GHz radio to accurately determine its location. This transmitter also uses the same channel to transmit alarm data. The button on the 60007 is used to summon for assistance when required. This device has a loop to attach to lanyard or to clothing with included clip.

The XL model is slightly wider and offers an extended battery life.







1Button

  • Lower cost, feature rich and smaller form factor than part 60001
  • Communicates with ATLAS® Locator field devices via 2.4GHz spectrum transmission
  • Reliable data transmission between 60007 XL and Locator at a minimum of 50 feet
  • Unique device ID within installation environment
  • Low battery notification both on device and via transmission to ATLAS® system head end
  • No on-site device programming required
  • Extended battery life (Up to 1.5 years, depending on user preferences and deployment profile *)



Dimensions: 1.7” diameter,  0.68” width

Case: Polycarbonate/ABS plastic/Lexan®

Weight: Approximately 0.6 oz.

Operating Temperature: 0° to 50° Celsius

Battery Type: Standard CR 2477X coin cell battery or approved equal

Data Transmission Settings: PAN ID, Ch 1-10, power +1dBm to -25dBm



Data Sheet

60007 XL | One Button XL Round Tag

The 60007 XL One Button Round Tag is designed for operation within the ATLAS® system architecture. This simple, reduced size transmitter is designed to provide staff, patients and vendors a lower cost alternative to the ruggedly constructed standard 60001 Heavy Duty Tag.

Like the standard Heavy Duty Tag, the 60007 utilizes a 2.4 GHz radio to accurately determine its location. This transmitter also uses the same channel to transmit alarm data. The button on the 60007 is used to summon for assistance when required. This device has a loop to attach to lanyard or to clothing with included clip.

The XL model is slightly wider and offers an extended battery life.

1Button

Features & Benefits

  • Lower cost, feature rich and smaller form factor than part 60001
  • Communicates with ATLAS® Locator field devices via 2.4GHz spectrum transmission
  • Reliable data transmission between 60007 XL and Locator at a minimum of 50 feet
  • Unique device ID within installation environment
  • Low battery notification both on device and via transmission to ATLAS® system head end
  • No on-site device programming required
  • Extended battery life (Up to 1.5 years, depending on user preferences and deployment profile *)





Specifications

Dimensions: 1.7” diameter,  0.68” width

Case: Polycarbonate/ABS plastic/Lexan®

Weight: Approximately 0.6 oz.

Operating Temperature: 0° to 50° Celsius

Battery Type: Standard CR 2477X coin cell battery or approved equal

Data Transmission Settings: PAN ID, Ch 1-10, power +1dBm to -25dBm



*Battery Life when deployed will vary as a function of duty time used, frequency of alarm transmissions sent, LED brightness/frequency, location broadcast interval settings and environmental conditions at your site. Based upon 1000mAh CR 2477X (Energizer)
