RS-100-L | Standard Receiver

RS-100-L | Standard Receiver



Receivers are installed into designated zones requiring staff security. A receiver converts the ultrasonic signal and processes this signal for transmission via LoRa to HubSens where the exact location is displayed.

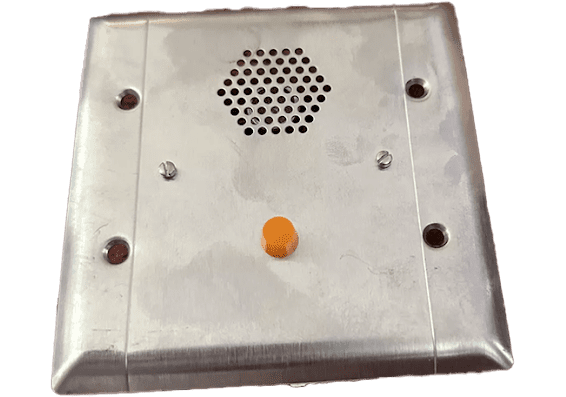

RS-100 (v2)

  • The RS-100 receiver has a stainless-steel faceplate and fits into a standard 4-square E.O. box.
  • Activated by a PALS Sentry transmitter.
  • A lamp on the receiver tells the person who activated the alarm that the signal was received.
  • Legacy version is available for 1-to-1 replacement for existing Sentry Installations without HubSens

Power Requirements:
12-27V DC
7 milliamperes nominal
25 milliamperes in alarm

Mounts on a two-gang E.O. box. The range shall not be less than 50 feet on axis and 22 feet at 70 degrees off-axis. Connections shall be by a pluggable terminal block.

Data Sheet

RS-100-L | Standard Receiver

Receivers are installed into designated zones requiring staff security. A receiver converts the ultrasonic signal and processes this signal for transmission via LoRa to HubSens where the exact location is displayed.

RS-100 (v2)

Features & Benefits

  • The RS-100 receiver has a stainless-steel faceplate and fits into a standard 4-square E.O. box.
  • Activated by a PALS Sentry transmitter.
  • A lamp on the receiver tells the person who activated the alarm that the signal was received.
  • Legacy version is available for 1-to-1 replacement for existing Sentry Installations without HubSens





Specifications

Power Requirements:
12-27V DC
7 milliamperes nominal
25 milliamperes in alarm

Mounts on a two-gang E.O. box. The range shall not be less than 50 feet on axis and 22 feet at 70 degrees off-axis. Connections shall be by a pluggable terminal block.
