ATLAS System | Tags

60006 | ATLAS Asset Tracking Tag

60006 | ATLAS Asset Tracking Tag



The 60006 Asset Tracking Tag is designed for operation within the ATLAS® system architecture. This simple, reduced size transmitter is designed to provide ATLAS installation the capability of tracking assets, personnel or patients in real time (RTLS).

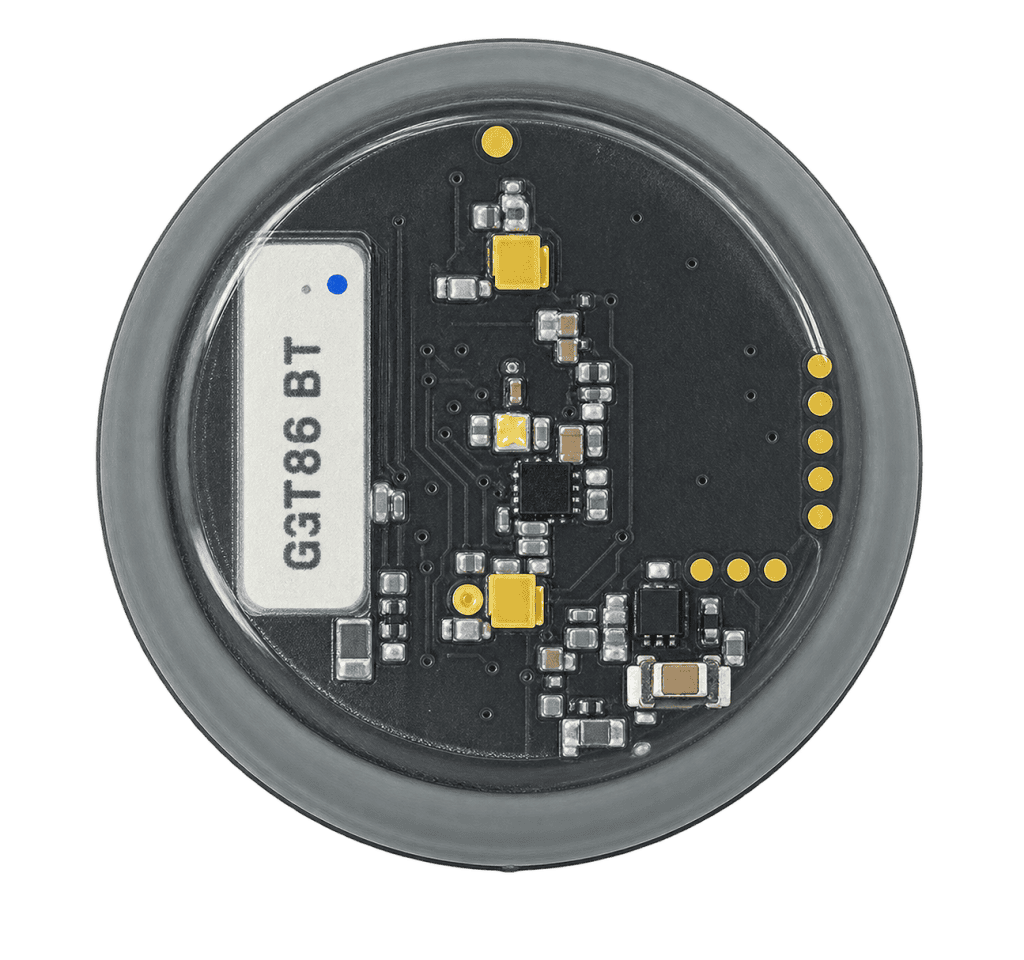

Like all ATLAS devices, the 60006 utilizes a 2.4 GHz radio to accurately determine its location. The device can be carried on its own, affixed to the asset to be tracked or worn in a variety of positions utilizing the rubberized case (shown in picture).







60006 | Asset Tracking Tag

  • Lower cost and smaller form factor than part 60001
  • Communicates with PALS® & ATLAS® Locator field devices via 2.4GHz spectrum transmission
  • Reliable data transmission between 60006 and Locator at a minimum of 50 feet
  • Extended battery life (up to 1.5 years, depending on user preferences and deployment profile *)
  • Low battery notification both on device and via transmission to system head end
  • Unique device ID within installation environment
  • Water resistant housing
  • On/Off feature available
  • No onsite device programming required. Device ships pre-programmed to user parameters



Dimensions: 1.7” diameter,  0.625” width

Case: Polycarbonate/ABS plastic/Lexan®

Weight: Approximately 0.4 oz.

Operating Temperature: 0° to 50° Centigrade

Battery Type: Standard CR 2032 coin cell battery or approved equal

Data Transmission: Settings PAN ID, Ch 1-10, power +1dBm to -25dBm



Actall Logo

60006 | ATLAS Asset Tracking Tag

The 60006 Asset Tracking Tag is designed for operation within the ATLAS® system architecture. This simple, reduced size transmitter is designed to provide ATLAS installation the capability of tracking assets, personnel or patients in real time (RTLS).

Like all ATLAS devices, the 60006 utilizes a 2.4 GHz radio to accurately determine its location. The device can be carried on its own, affixed to the asset to be tracked or worn in a variety of positions utilizing the rubberized case (shown in picture).

60006 | Asset Tracking Tag

Features & Benefits

  • Lower cost and smaller form factor than part 60001
  • Communicates with PALS® & ATLAS® Locator field devices via 2.4GHz spectrum transmission
  • Reliable data transmission between 60006 and Locator at a minimum of 50 feet
  • Extended battery life (up to 1.5 years, depending on user preferences and deployment profile *)
  • Low battery notification both on device and via transmission to system head end
  • Unique device ID within installation environment
  • Water resistant housing
  • On/Off feature available
  • No onsite device programming required. Device ships pre-programmed to user parameters





Specifications

Dimensions: 1.7” diameter,  0.625” width

Case: Polycarbonate/ABS plastic/Lexan®

Weight: Approximately 0.4 oz.

Operating Temperature: 0° to 50° Centigrade

Battery Type: Standard CR 2032 coin cell battery or approved equal

Data Transmission: Settings PAN ID, Ch 1-10, power +1dBm to -25dBm



*Battery Life when deployed will vary as a function of duty time used, frequency of alarm transmissions sent, LED brightness/frequency, location broadcast interval settings and environmental conditions at your site. Based upon 240mAh CR 2032 (Energizer).
