60008 | Two Button Round Tag

60008 | Two Button Round Tag

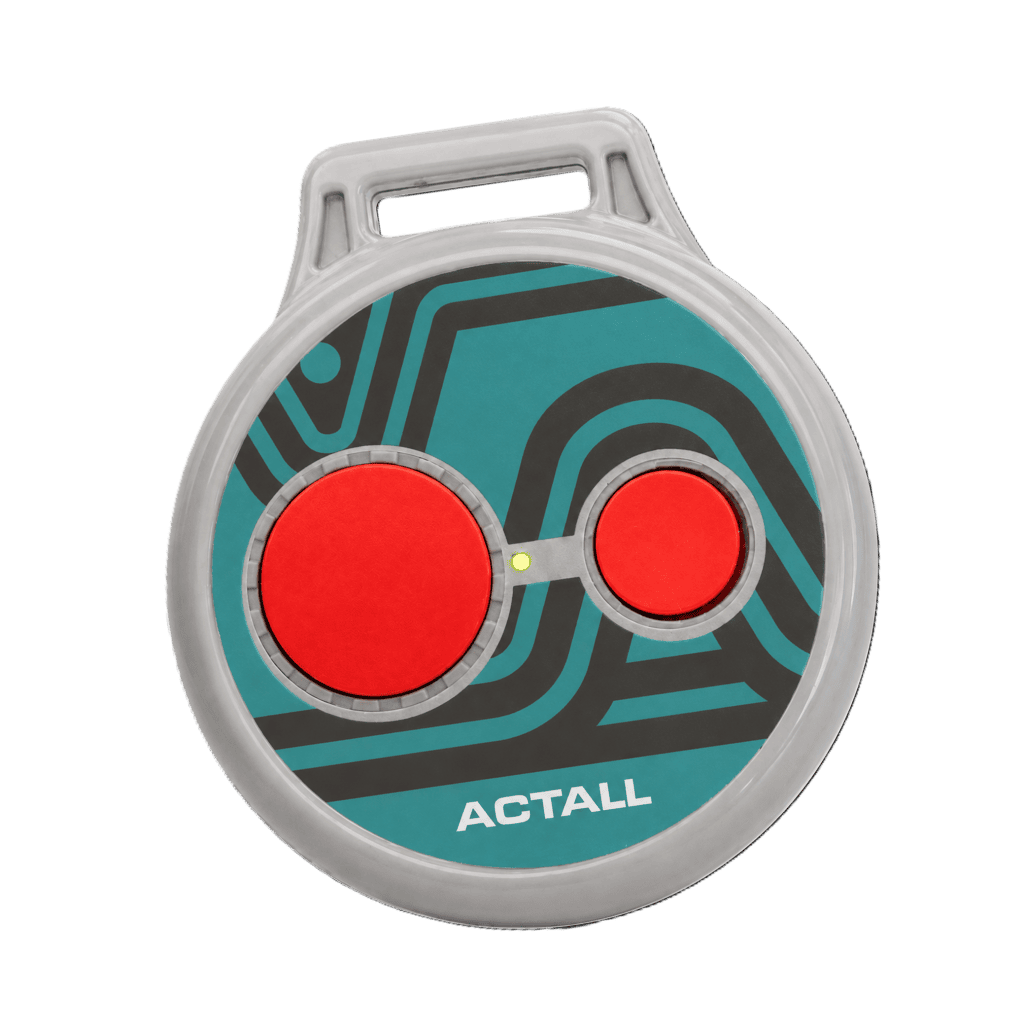

The 60008 Two Button Round Tag is designed for operation within the ACTALL ATLAS™ system architecture. This feature-rich, reduced-size tag is designed to provide
staff, patients and vendors a lower-cost alternative to the ruggedly constructed standard 60001 Heavy Duty Tag.

Like the standard Heavy Duty Tag, the 60008 utilizes a 2.4 GHz radio to accurately determine its location. This tag also uses the same channel to transmit alarm data. The buttons on the 60008 can be depressed by a user singularly or in combination to provide different functionality responses as defined by the user. This device has a loop to attach to lanyard or to clothing with included clip.







2Button

FEATURES

  • Lower cost, feature-rich, and smaller form factor than part 60001
  • Water-resistant housing
  • On/Off feature available
  • Communicates with ACTALL ATLAS™ Locator field devices via 2.4GHz spectrum transmission
  • Device ships pre-programmed to user parameters
  • Two LED indicators for on-device user notifications
  • Reliable data transmission between 60008 and Locator at a minimum of 50 feet
  • Unique device ID within installation environment
  • Low battery notification both on device and via transmission to ACTALL ATLAS™ system head end
  • No on-site device programming required
  • Extended battery life (Up to 1.5 years, depending on user preferences and deployment profile *)



SPECIFICATIONS

Dimensions: 1.7” diameter, 0.55” width
Case: Polycarbonate/ABS plastic/Lexan®
Weight: Approximately 0.4 oz.
Operating Temperature: 0° to 50° Centigrade
Battery Type: Standard CR 2032 coin cell battery or approved equal
Data Transmission Settings: PAN ID, Ch 1-10, power +1dBm to -25dBm



Data Sheet

60008 | Two Button Round Tag

The 60008 Two Button Round Tag is designed for operation within the ACTALL ATLAS™ system architecture. This feature-rich, reduced-size tag is designed to provide
staff, patients and vendors a lower-cost alternative to the ruggedly constructed standard 60001 Heavy Duty Tag.

Like the standard Heavy Duty Tag, the 60008 utilizes a 2.4 GHz radio to accurately determine its location. This tag also uses the same channel to transmit alarm data. The buttons on the 60008 can be depressed by a user singularly or in combination to provide different functionality responses as defined by the user. This device has a loop to attach to lanyard or to clothing with included clip.

2Button

Features & Benefits

  • Lower cost, feature-rich, and smaller form factor than part 60001
  • Water-resistant housing
  • On/Off feature available
  • Communicates with ACTALL ATLAS™ Locator field devices via 2.4GHz spectrum transmission
  • Device ships pre-programmed to user parameters
  • Two LED indicators for on-device user notifications
  • Reliable data transmission between 60008 and Locator at a minimum of 50 feet
  • Unique device ID within installation environment
  • Low battery notification both on device and via transmission to ACTALL ATLAS™ system head end
  • No on-site device programming required
  • Extended battery life (Up to 1.5 years, depending on user preferences and deployment profile *)





Specifications

Dimensions: 1.7” diameter, 0.55” width
Case: Polycarbonate/ABS plastic/Lexan®
Weight: Approximately 0.4 oz.
Operating Temperature: 0° to 50° Centigrade
Battery Type: Standard CR 2032 coin cell battery or approved equal
Data Transmission Settings: PAN ID, Ch 1-10, power +1dBm to -25dBm



*Battery Life when deployed will vary as a function of duty time used, frequency of alarm transmissions sent, LED brightness/frequency, location broadcast interval settings and environmental conditions at your site. Based upon 240mAh CR 2032 (Energizer).
